Changeover pin - iron - for door hardware

Item No.: ABS-1wisselstiftt-M10-125-VM-40.0509.55
17,50
Add to wishlist
Article numbers
EAN:
7428472484761
Description

Exchange pin - iron - for door furniture

This changeover pin is used when the knob on the outside of the door is to be fixed - (not rotatable) - in a changeover set.

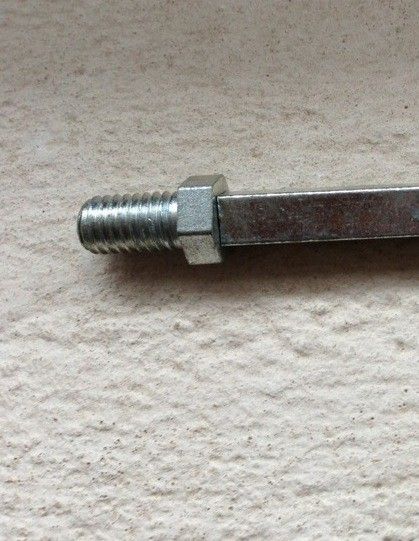

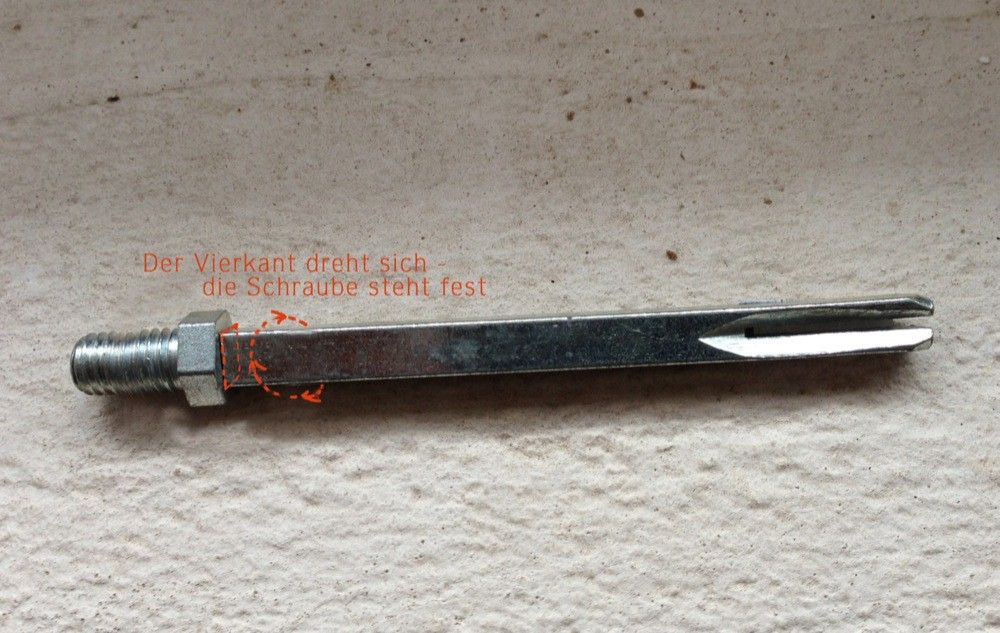

The door handle on the inside can still be moved, as the M10 thread is screwed into the knob from behind and the 8 mm square pin is attached to the thread, but can be turned.
M10 thread with rotatable square pin - door knob fixed - handle rotatable.

Mounting:

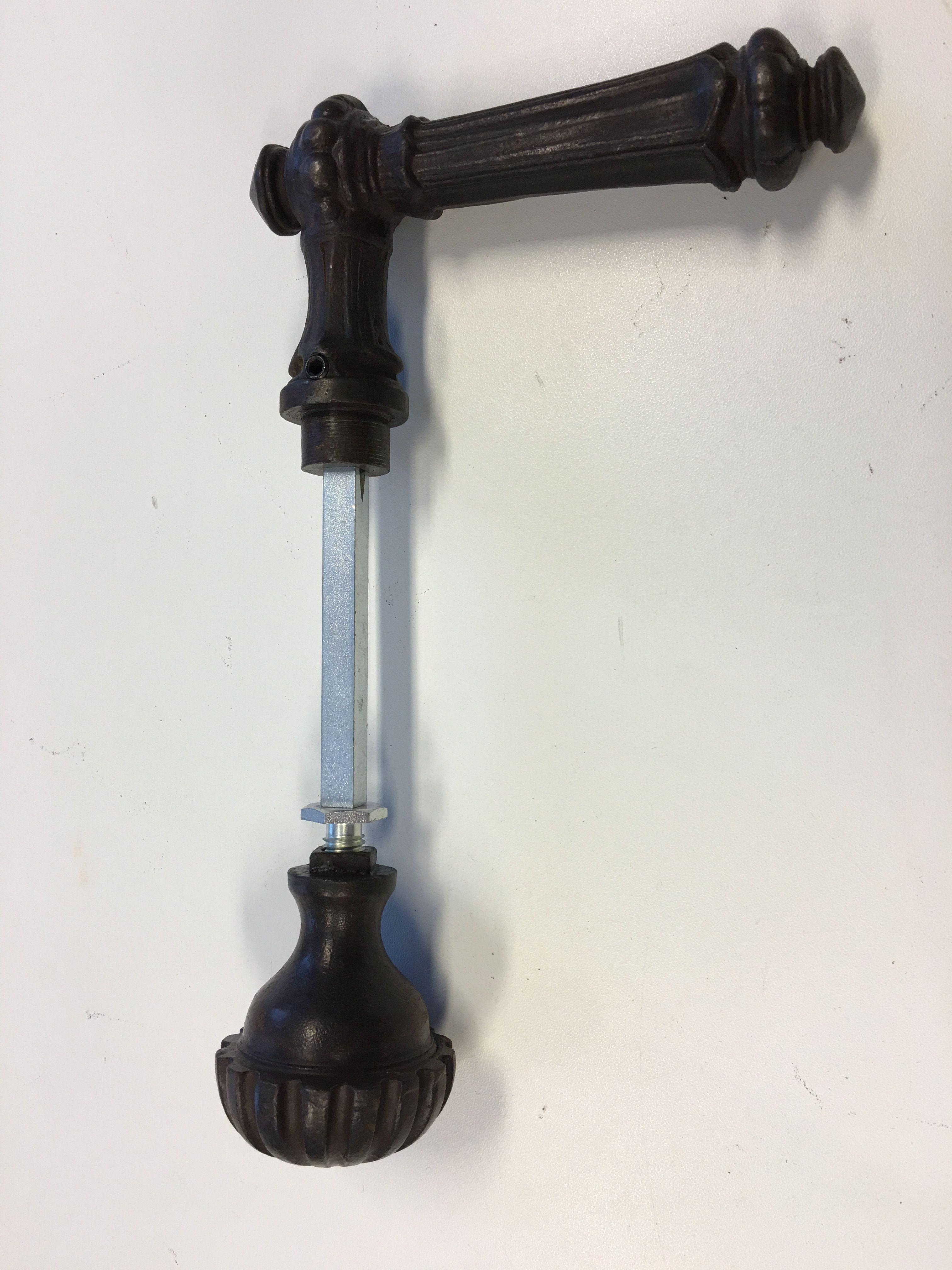

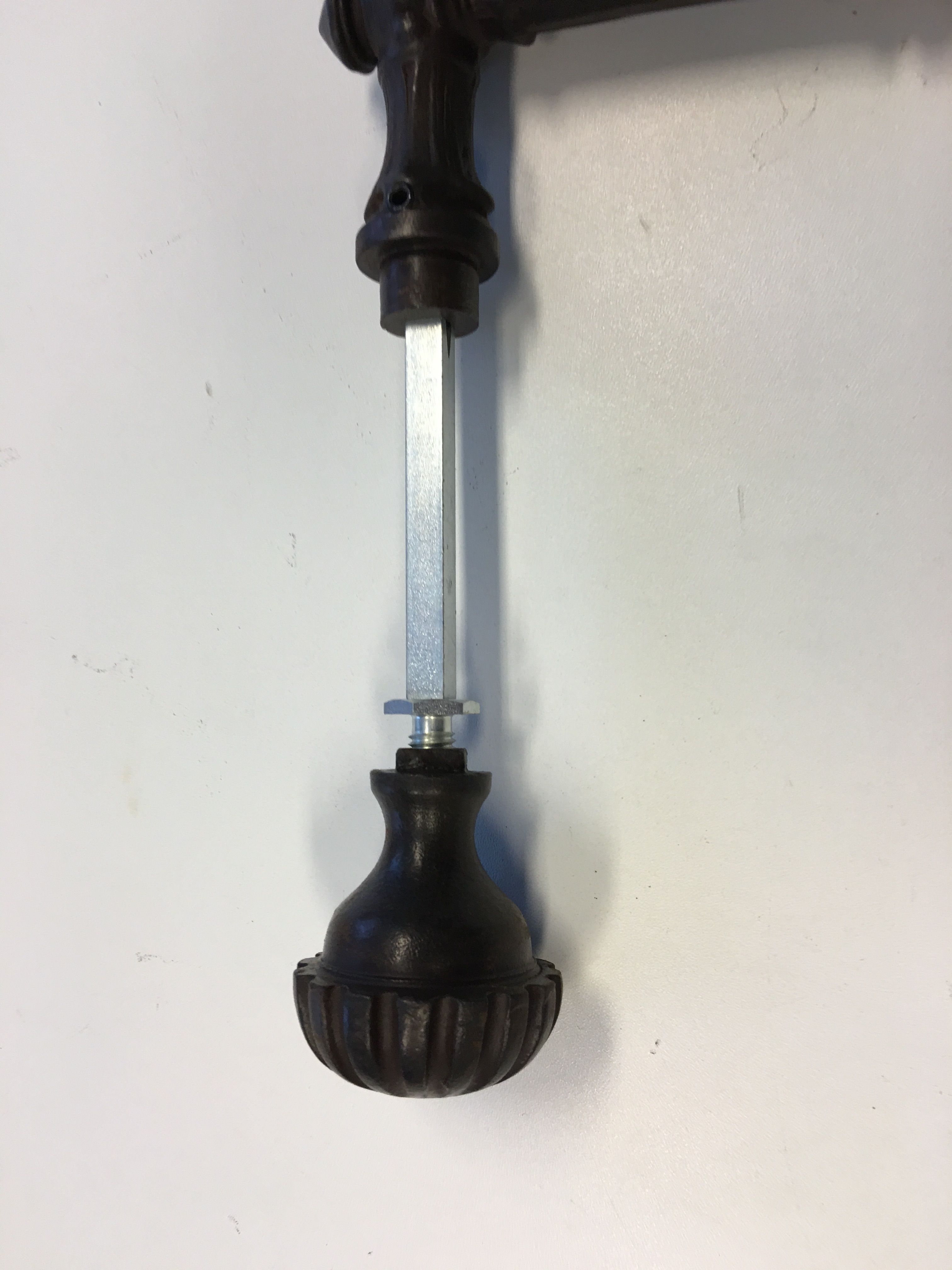

The rotating square pin is guided through the lock follower in the door and fixed to the door handle with a set screw. The doorknob is screwed onto the thread of the changeover pin on the outside.â?

Scope of delivery: 1 pin for exchangeable door knobs, iron
(ABS-1Drehwechselstift-M10/125-DVH-40.0509.55)

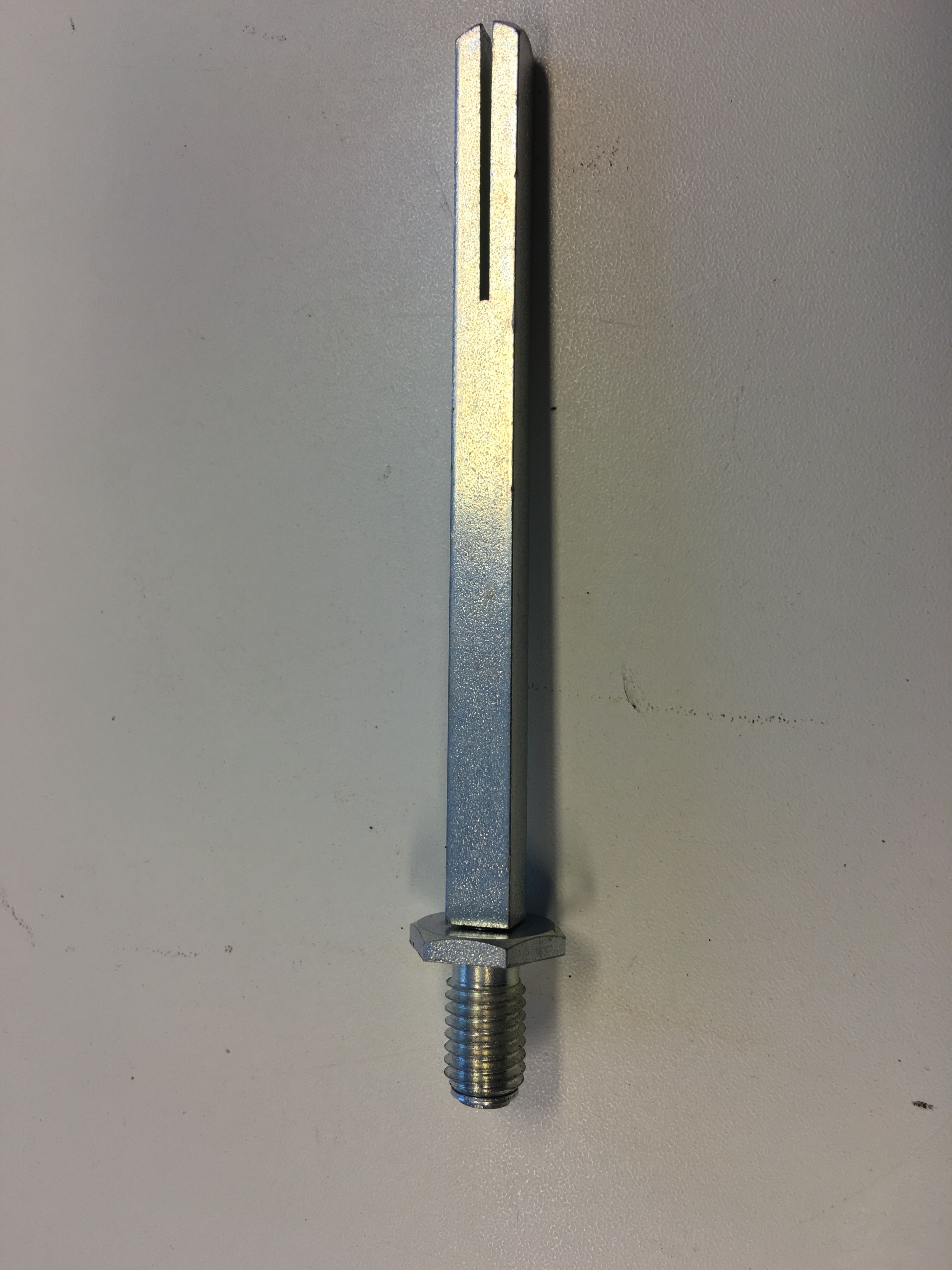

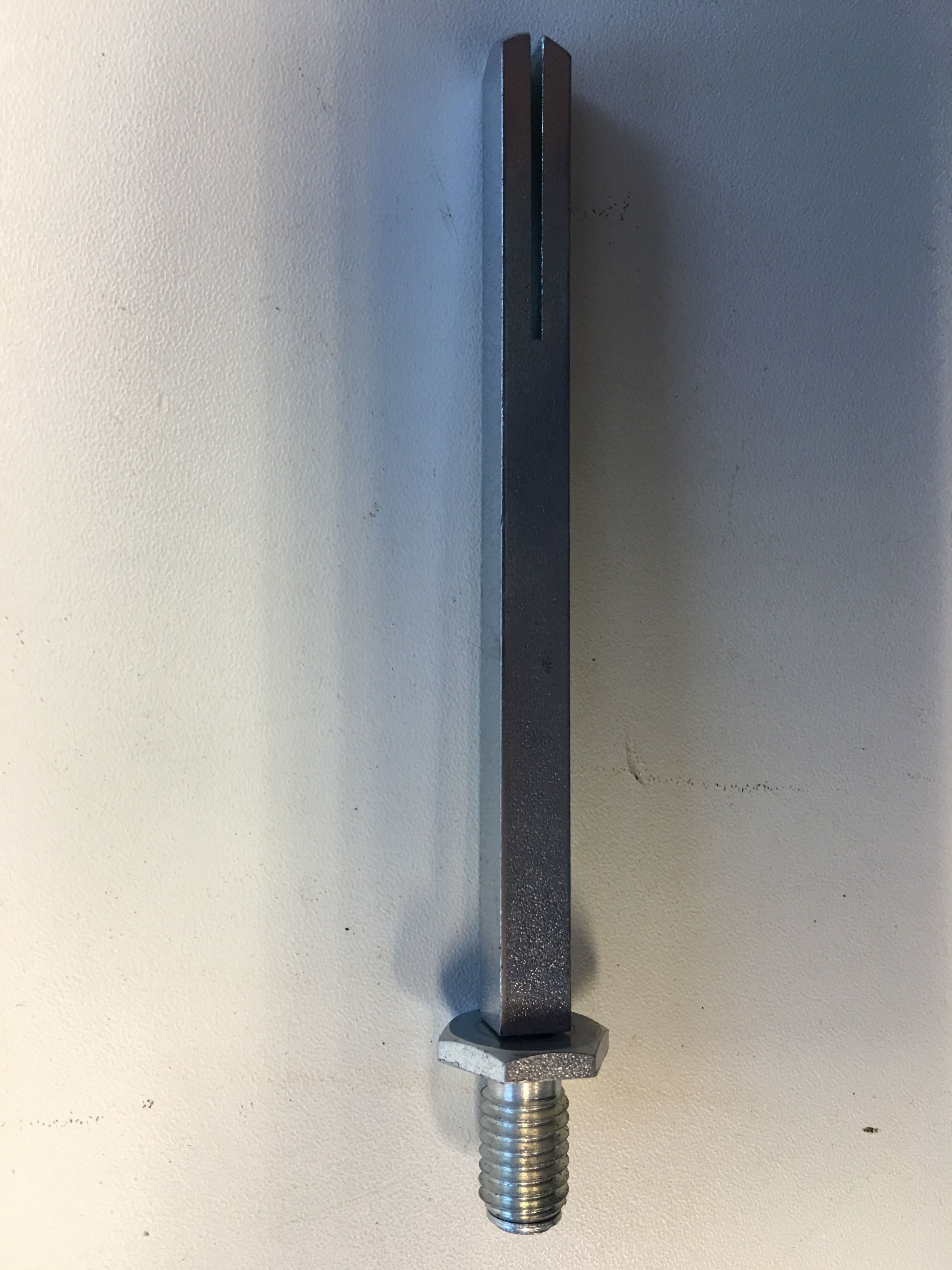

Dimensions:
8 x 8 mm square pin/mandrel.
Overall length with screw 125 mm - Pin length: 100 mm
Thread M10

Weight: 0.3 kg
